Firesleeve End Cut Liquid Dip & Paste Sealant, Clamps & Tools,
End Wrap Tape
End Wrap Tape
· High temperature FlameShieldä SleeveSealä sealant paste is our special formulation of high-temperature silicone rubber, packaged
into a convenient 3oz squeeze tube or 10.3oz caulking tube, for use on mechanical joints, and as a potting compound, anywhere
a high-temperature adhesive/sealant is required. 2 grades: +260°C and +300°C continuous.
· Liquid FlameShieldä Seal-Dipä is a special formulation of our high-temperature silicone rubber which is a liquid until exposed to air,
when it cures rapidly into a flexible protective covering of silicone rubber. Perfect for protecting the ends of sleeve and
tape from fraying, or from contamination, and from wicking liquids such as water, oil, hydraulic fluid, etc. Usually used
as a dip for sleeve and rope. Non corrosive and meets Mil-A-46146 as per NAVAIR 01-1A-20.
into a convenient 3oz squeeze tube or 10.3oz caulking tube, for use on mechanical joints, and as a potting compound, anywhere
a high-temperature adhesive/sealant is required. 2 grades: +260°C and +300°C continuous.
· Liquid FlameShieldä Seal-Dipä is a special formulation of our high-temperature silicone rubber which is a liquid until exposed to air,
when it cures rapidly into a flexible protective covering of silicone rubber. Perfect for protecting the ends of sleeve and
tape from fraying, or from contamination, and from wicking liquids such as water, oil, hydraulic fluid, etc. Usually used
as a dip for sleeve and rope. Non corrosive and meets Mil-A-46146 as per NAVAIR 01-1A-20.
Firesleeve Stainless Steel Clamps
Firesleeve Clamp Tool
Stainless steel clamps are used to secure firesleeve to the body of the hose fitting or for general securing of sleeve and tape to wires, cables, pipes, etc.
Pre-formed Twice-Around Stainless Steel band clamps are available in sizes from 13/16" ID through 4 1/2" ID in 201 and 316 Stainless Steel.
Single-End Self-Locking Stainless Steel Clamps are available in .181" and .311" widths and in lengths from 6" to 33".
Single-End Stainless Steel Clamps that require fold-over to secure are available in 1/4 and 3/8" widths.
After clamping, the assembly may be finished with SleeveSeal paste or End Wrap Tape.
Clamps may be tightened with common tools, but specific designed clamp tools are available which make installation quick and easy.
Pre-formed Twice-Around Stainless Steel band clamps are available in sizes from 13/16" ID through 4 1/2" ID in 201 and 316 Stainless Steel.
Single-End Self-Locking Stainless Steel Clamps are available in .181" and .311" widths and in lengths from 6" to 33".
Single-End Stainless Steel Clamps that require fold-over to secure are available in 1/4 and 3/8" widths.
After clamping, the assembly may be finished with SleeveSeal paste or End Wrap Tape.
Clamps may be tightened with common tools, but specific designed clamp tools are available which make installation quick and easy.
Firesleeve with Stainless
Self-Locking Clamp
Self-Locking Clamp

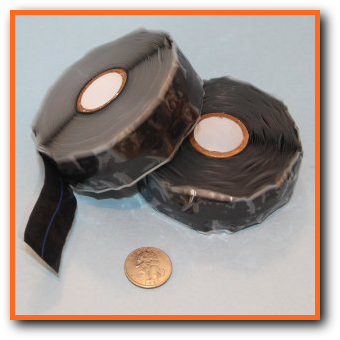

This high temperature, heat and flame resistant silicone rubber end wrap tape is the perfect choice for sealing the ends of firesleeve, thereby preventing the firesleeve from wicking liquids such as water, oil or hydraulic fluid. This silicone tape can also be used to help secure other types of fiberglass and silica tapes over wires, cables, hoses, tube and pipe..
The tape has a blue stripe running down the centre as an aid to performing a standard 50% overlap when wrapping the tape around Sleeve, hoses and cables.
End-wrap silicone rubber tape is self bonding to itself and other silicone rubber sleeve and tape, providing a waterproof/air tight end to the installation of firesleeve sleeve over hoses and cables.
This tape is available in 1" and 1 1/2" widths (25 & 37mm), with 36 feet of tape per roll. The tape is mounted on a backing film for easy unwinding.
Also available meeting specification A-A-59163 and Mil-I-46852.
The tape has a blue stripe running down the centre as an aid to performing a standard 50% overlap when wrapping the tape around Sleeve, hoses and cables.
End-wrap silicone rubber tape is self bonding to itself and other silicone rubber sleeve and tape, providing a waterproof/air tight end to the installation of firesleeve sleeve over hoses and cables.
This tape is available in 1" and 1 1/2" widths (25 & 37mm), with 36 feet of tape per roll. The tape is mounted on a backing film for easy unwinding.
Also available meeting specification A-A-59163 and Mil-I-46852.
Silicone End Wrap Tape
Available in Oxide-Red and Black
Available in Oxide-Red and Black
FlameShieldä SleeveSealä Liquid Silicone Rubber Dip and sealant paste
Firesleeve clamps and clamp tools
SleeveSeal End Wrap Tape
Firesleeve end with clamp
protected with End Wrap Tape
protected with End Wrap Tape
This photo shows a firesleeve with velcro in place wrapped around a cable.
The overlapping edge of the right-hand section of the sleeve is sealed with a spiral wrap of end wrap tape, completely sealing the sleeve from exposure to contamination.
The end wrap tape can be easily removed if necessary, allowing the velcro sleeve to be opened or removed from its installation.
The overlapping edge of the right-hand section of the sleeve is sealed with a spiral wrap of end wrap tape, completely sealing the sleeve from exposure to contamination.
The end wrap tape can be easily removed if necessary, allowing the velcro sleeve to be opened or removed from its installation.
The shelf life of uncured liquid silicone rubber end dip can be greatly extended by keeping the closed container inside an airtight container or bag, along with a desiccant pack.
The desiccant pack is regenerable to make it reuseable indefinately.
Part number AB-SGD-1.
The desiccant pack is regenerable to make it reuseable indefinately.
Part number AB-SGD-1.
Part Number
US-ESD
US-ESP
AB-SGD-1
US-ESD
US-ESP
AB-SGD-1
Click Image
To Open
Catalog Page
Catalog Page
All clamps and tools summary page
Click Image
To Open
Catalog Page
Catalog Page
Part Number
T-SRET
T-SRET
Click Image
To Open
Catalog Page
Catalog Page
