Braided Kevlar® Aramid Sleeve for wire cable hose protection
High Temperature, Heat & Flame Resistant & Thermal Insulating. Cut and Abrasion Resistance.
High Temperature, Heat & Flame Resistant & Thermal Insulating. Cut and Abrasion Resistance.
320°F / 160°C Continuous Exposure:
Higher Intermittent
FlameShieldä high temperature and heat resistant Kevlar aramid sleeve is fabricated from high quality yarns that will not burn and will withstand continuous exposure to temperatures of 320°F / 160°C. It provides excellent protection for industrial wires, cables, hoses (hydraulics), tube and pipes and also provides thermal insulation and personnel protection. Kevlar is highly cut resistant, making this sleeve especially suited where contact with sharp edges is a concern.
This sleeve is available in a Standard wall thickness and a Heavy Duty thick wall. As well, the weave of the Heavy Duty version is dense and tight, providing superior coverage.
This high temperature sleeve / heat resistant sleeve resists most acids and alkalis and is unaffected by most bleaches and solvents. The Standard sleeve is highly flexible and conformable while the Heavy Duty version is stiffer but still very flexible.
Both sleeves do experience end fray when cut as there is no binder present in the sleeve; there are several methods of reducing the fray: please visit our FAQ section for further information.
Higher Intermittent
FlameShieldä high temperature and heat resistant Kevlar aramid sleeve is fabricated from high quality yarns that will not burn and will withstand continuous exposure to temperatures of 320°F / 160°C. It provides excellent protection for industrial wires, cables, hoses (hydraulics), tube and pipes and also provides thermal insulation and personnel protection. Kevlar is highly cut resistant, making this sleeve especially suited where contact with sharp edges is a concern.
This sleeve is available in a Standard wall thickness and a Heavy Duty thick wall. As well, the weave of the Heavy Duty version is dense and tight, providing superior coverage.
This high temperature sleeve / heat resistant sleeve resists most acids and alkalis and is unaffected by most bleaches and solvents. The Standard sleeve is highly flexible and conformable while the Heavy Duty version is stiffer but still very flexible.
Both sleeves do experience end fray when cut as there is no binder present in the sleeve; there are several methods of reducing the fray: please visit our FAQ section for further information.
High-Temperature Braided Kevlar Aramid Sleeve:

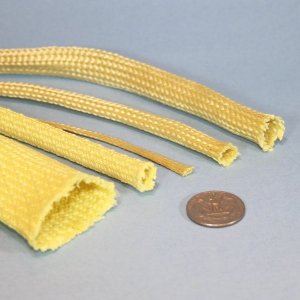

Left two sleeves are Heavy Duty Thick Wall; Right three sleeves are Standard Duty
Left two sleeves are Heavy Duty Thick Wall; Right three sleeves are Standard Duty
Standard Part Number:
S-K-SW
S-K-SW
Kevlar products are difficult to cut due to their strength. Regular or heavy duty scissors can sometimes cut these materials, but often fail quickly as the Kevlar quickly dulls the cutting edge.
Kevlar Shears are specifically designed to cut Kevlar, and feature a serrated blade so that the fibers don’t slip while cutting, holding the fiber in position and allowing for a greater shear force to be applied by the opposing blade.
These shears a Extra Heavy Duty, and can be used for other materials such as cutting steel wires and steel tie wraps.
Kevlar Shears are specifically designed to cut Kevlar, and feature a serrated blade so that the fibers don’t slip while cutting, holding the fiber in position and allowing for a greater shear force to be applied by the opposing blade.
These shears a Extra Heavy Duty, and can be used for other materials such as cutting steel wires and steel tie wraps.
Share this page.....
Click Image
To Open
Catalog Page
Catalog Page
Standard Part Number:
S-K-HD
S-K-HD
Click Image
To Open
Catalog Page
Catalog Page
Standard Part Number:
TL-S-KEV-HD
TL-S-KEV-HD
Click Image
To Open
Catalog Page
Catalog Page
03/18
Colored Part Number:
S-K-SWC
S-K-SWC
Click Image
To Open
Catalog Page
Catalog Page

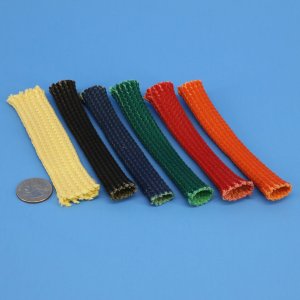

Colored Braided Kevlar Aramid Sleeve
All Kevlar Sleeves:
S-K-ALL
S-K-ALL
Click Image
To Open
Catalog Page
Catalog Page
