Vermiculite Coated Fiberglass Tape - Plain & Bolt-Hole
- Very High Temperature, Heat & Flame Resistant Thermal Insulating
- Wire, cable, hose, pipe and tube protection
- Very High Temperature, Heat & Flame Resistant Thermal Insulating
- Wire, cable, hose, pipe and tube protection
1500°F / 815°C Continuous Exposure:
Higher Intermittent
FlameShield™ 1500 vermiculite coated tape is a high temperature, heat and flame resistant thermal insulating tape that will withstand temperatures of 1500°F / 815°C continuous exposure. The base High Temperature braided fiberglass sleeving is fabricated from high quality type E fiberglass that will not burn. The sleeve is then coated with a vermiculite dispersant.
This material resists most acids and alkalis and is unaffected by most bleaches and solvents. It is highly flexible and conformable.
Applications for this product include thermal insulation and/or protection of wires, cables, hoses, pipe and tube, as well as affording energy savings and personnel protection.
The vermiculite coating also adds abrasion resistance to the sleeve.
The tape is available in Plain and Drop Warp Styles. Drop Warp tape has several of the center lengthwise yarns missing during weaving, and allows the tape to be easily used for bolt-hole applications (sometimes called ladder tape).
Tested and certified to meet ASTM E 162, ASTM E 662 and
SMP 800-C for surface flammability, smoke and toxic gas production.
Higher Intermittent
FlameShield™ 1500 vermiculite coated tape is a high temperature, heat and flame resistant thermal insulating tape that will withstand temperatures of 1500°F / 815°C continuous exposure. The base High Temperature braided fiberglass sleeving is fabricated from high quality type E fiberglass that will not burn. The sleeve is then coated with a vermiculite dispersant.
This material resists most acids and alkalis and is unaffected by most bleaches and solvents. It is highly flexible and conformable.
Applications for this product include thermal insulation and/or protection of wires, cables, hoses, pipe and tube, as well as affording energy savings and personnel protection.
The vermiculite coating also adds abrasion resistance to the sleeve.
The tape is available in Plain and Drop Warp Styles. Drop Warp tape has several of the center lengthwise yarns missing during weaving, and allows the tape to be easily used for bolt-hole applications (sometimes called ladder tape).
Tested and certified to meet ASTM E 162, ASTM E 662 and
SMP 800-C for surface flammability, smoke and toxic gas production.

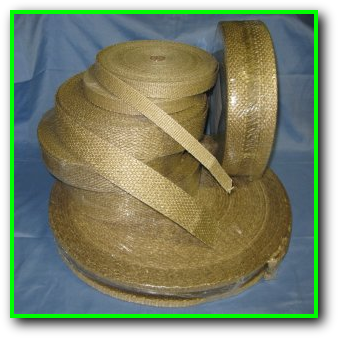

Very High-Temperature Vermiculite Coated Fiberglass Tape

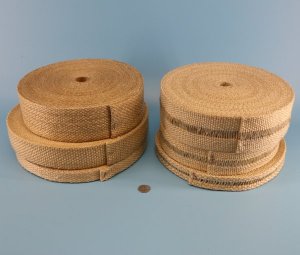

Plain tape is shown on the left.
Bolt-hole / Ladder tape is shown on the right.
Plain tape is shown on the left.
Bolt-hole / Ladder tape is shown on the right.
Technical Specifications
Fiber Type: E Glass
Specific Gravity: 2.54-2.69
Breaking Tenacity: 1.71 gf/TEX. Std. 1.71 gf/TEX Wet
Effect of Heat: Will not burn; Retains 75% tensile at 343°C; Softens at 732-877°C; Melts at 1121-1182°C
Tensile Strength: 450,000-500,000 psi.
Effect of Acids and Alkalis; Resistance to acids is fair. Good resistance to most alkalis.
Breaking Elongation: 4.81% Std. 4.81% Wet
Elastic Recovery: 100%
Effect of Bleaches and Solvents: Unaffected
Average Stiffness: 2824.3 cn/TEX
Fiber Type: E Glass
Specific Gravity: 2.54-2.69
Breaking Tenacity: 1.71 gf/TEX. Std. 1.71 gf/TEX Wet
Effect of Heat: Will not burn; Retains 75% tensile at 343°C; Softens at 732-877°C; Melts at 1121-1182°C
Tensile Strength: 450,000-500,000 psi.
Effect of Acids and Alkalis; Resistance to acids is fair. Good resistance to most alkalis.
Breaking Elongation: 4.81% Std. 4.81% Wet
Elastic Recovery: 100%
Effect of Bleaches and Solvents: Unaffected
Average Stiffness: 2824.3 cn/TEX
3/18
Share this page.....
Click Image
To Open
Catalog Page
Catalog Page
Part Number
T-FG-VC-W-P
T-FG-VC-W-P
Click Image
To Open
Catalog Page
Catalog Page
Part Number
T-FG-VC-W-I
T-FG-VC-W-I
