Molten metals simply slide off of the extra heavy duty coating of High-Temperature Silicone Rubber on all of these products, providing excellent burn-through protection.

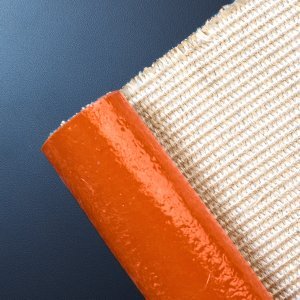

Silicone Rubber Coated Fiberglass Fabric
High Temperature, Heat, Flame, Molten Metal Splash Resistant
Silicone Rubber Coated High-Temperature & Heat Resistant Fiberglass Fireblanket
High Temperature, Heat, Flame, Molten Metal Splash Resistant
Silicone Rubber Coated High-Temperature & Heat Resistant Fiberglass Fireblanket
High Temperature Heavy Duty
Fireblanket Fabric
Fireblanket Fabric
500°F / 260°C Continuous Exposure:
Higher Intermittent
FlameShield™ High temperature, heat and flame resistant silicone rubber coated fiberglass (fibreglass or glassfibre) fireblanket is the perfect choice for protecting a variety of hoses, lines, wires, cables and equipment assemblies such as electronic enclosures, valves, robotic arm and elbow protection, etc., from exposure to high and extreme heat conditions.
The special formulation of silicone rubber on this fabric sheds molten metals, slag, welding splatter, electrical or grinding sparks and contamination. This fireblanket also provides protection from ozone, UV and abrasion.
The standard color is red-oxide for the heavy duty one-side coated fabric, and silver colored fabric is available for light and medium duty fireblanket.
Two versions of heavy duty fabric are available and three light/medium duty standard fabrics are available - with many other specialized fabrics available which are custom produced to order within days.
Higher Intermittent
FlameShield™ High temperature, heat and flame resistant silicone rubber coated fiberglass (fibreglass or glassfibre) fireblanket is the perfect choice for protecting a variety of hoses, lines, wires, cables and equipment assemblies such as electronic enclosures, valves, robotic arm and elbow protection, etc., from exposure to high and extreme heat conditions.
The special formulation of silicone rubber on this fabric sheds molten metals, slag, welding splatter, electrical or grinding sparks and contamination. This fireblanket also provides protection from ozone, UV and abrasion.
The standard color is red-oxide for the heavy duty one-side coated fabric, and silver colored fabric is available for light and medium duty fireblanket.
Two versions of heavy duty fabric are available and three light/medium duty standard fabrics are available - with many other specialized fabrics available which are custom produced to order within days.
High Temperature & Heat Resistant Silicone Rubber Coated Fiberglass Fabric & Cloth Withstands 500°F/260°C continuous exposure; Molten Metal Splash at 2200°F/1205°C for periods up to 15 minutes and short excursions to 3000°F/1650°C.
Our most popular fabrics (see catalog for complete listing):
FlameShieldä and SplashGuardä
98 oz/yd2 coated one side
98 oz/yd2 coated one side
FlameShieldä SR 32oz/yd2 fireblanket: coated two sides
FlameShieldä SR 17oz/yd2 fireblanket: coated two sides
The extra thick special formulation of silicone rubber sheds molten metals, slag, welding splatter, electrical or grinding sparks and contamination. FlameShield also provides protection from ozone, UV and abrasion.
This Heady Duty roll fabric is supplied in 40" widths and weighs 98 oz/sq yd. Cut to length, or supplied in 50, 100 and 150 foot lengths. The 50oz fabric is a 36" roll width.
Grommets and mechanical fasteners such as screws and bolts can be easily punched or drilled through the fabrics. Other fasteners can be attached by sewing or crimping through the fabric; allowing a variety of complex shapes to be fabricated.
This Heady Duty roll fabric is supplied in 40" widths and weighs 98 oz/sq yd. Cut to length, or supplied in 50, 100 and 150 foot lengths. The 50oz fabric is a 36" roll width.
Grommets and mechanical fasteners such as screws and bolts can be easily punched or drilled through the fabrics. Other fasteners can be attached by sewing or crimping through the fabric; allowing a variety of complex shapes to be fabricated.
This is a medium weight fabric, suitable for light molten splash, weld splatter and grinding spark protection. The base fabric is coated on both sides with our special formulation of silicone rubber . Easy to work with when fabricating complex shapes for covers and shields. Provides against ozone, UV and abrasion.
Supplied in 60" widths and weighs 32 oz/sq yd. Cut to length or supplied in 150 foot lengths.
Various fasteners can be attached by sewing, crimping or bolting through the fabric; allowing a variety of complex shapes to be fabricated.
Supplied in 60" widths and weighs 32 oz/sq yd. Cut to length or supplied in 150 foot lengths.
Various fasteners can be attached by sewing, crimping or bolting through the fabric; allowing a variety of complex shapes to be fabricated.
This is a light to medium weight fabric, suitable for welding protection, grinding protection, and is often used on the cold side of insulation fabrications. It is also designed to meet the requirements for use in nuclear reactors. Meets UL214 and/or NFPA-701. Also meets NRC Guide 1.36 and MIL-I-24244.
Very easy to work with when fabricating complex shapes for covers and shields. Provides against ozone, UV and abrasion.
Supplied in 60" widths and weighs 18 oz/sq yd. Cut to length or supplied in 150 foot lengths.
Various fasteners can be attached by sewing or crimping, allowing a variety of complex shapes to be fabricated.
Very easy to work with when fabricating complex shapes for covers and shields. Provides against ozone, UV and abrasion.
Supplied in 60" widths and weighs 18 oz/sq yd. Cut to length or supplied in 150 foot lengths.
Various fasteners can be attached by sewing or crimping, allowing a variety of complex shapes to be fabricated.
Most fabrics meet UL214 / NFPA-701, NRC Guide 1.36, MIL-I-24244. Tensile strength 325 lbs/inch warp minimum / 250 lbs/inch fill minimum (ASTM-D-5035); tear strength 60 lbs min warp and fill (ASTM-D-5587); burst strength 600 psi minimum (ASTM-D-3786); flame resistance char length 1/16” max, afterglow 1 second max, flame out 1 second max (FED 191/5903.2). Weight and thickness as per ASTM-D-3776 & ASTM-D-1777.
FlameShieldä and SplashGuardä
50 oz/yd2 coated one side
50 oz/yd2 coated one side
With a thick special formulation of silicone rubber this material sheds molten metals, slag, welding splatter, electrical or grinding sparks and contamination. Also provides protection from ozone, UV and abrasion.
This Heady Duty roll fabric is supplied in 40" widths and weighs 50 oz/sq yd. Cut to length, or supplied in 50, 100 and 150 foot lengths.
Various fasteners can be attached by sewing, crimping or bolting through the fabric; allowing a variety of complex shapes to be fabricated.
This Heady Duty roll fabric is supplied in 40" widths and weighs 50 oz/sq yd. Cut to length, or supplied in 50, 100 and 150 foot lengths.
Various fasteners can be attached by sewing, crimping or bolting through the fabric; allowing a variety of complex shapes to be fabricated.
Part Number
F-FG-SR
F-FG-SR
