Clean Room & Paint Shop Booth High Temperature Gasket Door Seal
High Temperature and Heat Resistant
1200°F / 648°C Continuous: Higher Intermittent
This high temperature, heat & flame resistant and thermal insulating fiberglass rope gasket is fabricated with high quality type E fiberglass that will not burn and will withstand continuous exposure to temperatures of 1200°F / 648°C. Commonly used as a gasket or seal for access doors and other oven and stove applications - extremely clean for paint shop applications.
This material resists most acids and alkalis and is unaffected by most bleaches and solvents. It is highly flexible and conformable.
The base fiber is manufactured to the specifications of ASTM D-578, ASTM committee D13, and subcommittee D13.18.
This rope gasket features high compression capability and excellent push back and extremely low compression set, with high cycle life, due to the knitted metallic sleeve core.
Two size of the rope are available: OD of 0.42" / 10.7mm & 0.57" / 14.4mm. Clip spacing is 3". Clips may be removed with side cutters.
This high temperature, heat & flame resistant and thermal insulating fiberglass rope gasket is fabricated with high quality type E fiberglass that will not burn and will withstand continuous exposure to temperatures of 1200°F / 648°C. Commonly used as a gasket or seal for access doors and other oven and stove applications - extremely clean for paint shop applications.
This material resists most acids and alkalis and is unaffected by most bleaches and solvents. It is highly flexible and conformable.
The base fiber is manufactured to the specifications of ASTM D-578, ASTM committee D13, and subcommittee D13.18.
This rope gasket features high compression capability and excellent push back and extremely low compression set, with high cycle life, due to the knitted metallic sleeve core.
Two size of the rope are available: OD of 0.42" / 10.7mm & 0.57" / 14.4mm. Clip spacing is 3". Clips may be removed with side cutters.
Share this page.....
12/18
These gaskets are heat cleaned which results in an extremely clean surface which does not shed fibers. Three versions are available:
· Hollow fiberglass rope with a hollow metal mesh core and clip mounting - offering
high compression, low compression set and excellent push-back.
· Tadpole with a hollow metal mesh core - offering high compression,
low compression set and excellent push-back.
· Metal mesh solid rope with fiberglass overbraid - Low compression,
low compression set and excellent puch-back.
· Hollow fiberglass rope with a hollow metal mesh core and clip mounting - offering
high compression, low compression set and excellent push-back.
· Tadpole with a hollow metal mesh core - offering high compression,
low compression set and excellent push-back.
· Metal mesh solid rope with fiberglass overbraid - Low compression,
low compression set and excellent puch-back.
Part Number
R-FG-KC
R-FG-KC
Click Image
To Open
Catalog Page
Catalog Page

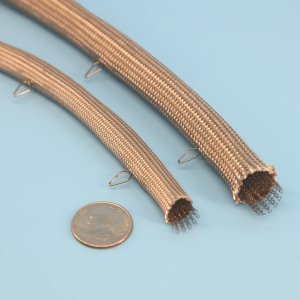

Hollow fiberglass rope with hollow metal mesh core and clip mounting
Precision Tadpole Gasket with Hollow Metal Mesh Bulb Insert and tail that may be filled
Heat Treated Braided Outer Shell - Paint Shop and Clean Room Applications
1200°F / 648°C Continuous: Higher Intermittent

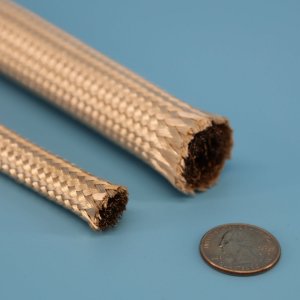

This high temperature, heat and flame resistant fiberglass gasket rope has a stainless steel wire mesh core.
This rope is fabricated from high quality type E fiberglass that will not burn and will withstand continuous exposure to temperatures of 1200°F / 648°C. This high temperature rope is used as a gasket or seal with excellent compression resistance.
This version of the rope has a smooth braided shell made from filamant fiber yarn, providing an extremely clean and free of loose fiber outer shell, especially suited for applications such as paint shop booths where loose fibers are not tolerated, such as automotive assembly.
This material resists most acids and alkalis and is unaffected by most bleaches and solvents. It is highly flexible and conformable.
Supplied cut to length, this metal mesh cored rope makes an excellent seal due to its compressability, and adds EMI/RFI protection to cabinets and enclosures.
This high temperature, heat and flame resistant fiberglass gasket rope has a stainless steel wire mesh core.
This rope is fabricated from high quality type E fiberglass that will not burn and will withstand continuous exposure to temperatures of 1200°F / 648°C. This high temperature rope is used as a gasket or seal with excellent compression resistance.
This version of the rope has a smooth braided shell made from filamant fiber yarn, providing an extremely clean and free of loose fiber outer shell, especially suited for applications such as paint shop booths where loose fibers are not tolerated, such as automotive assembly.
This material resists most acids and alkalis and is unaffected by most bleaches and solvents. It is highly flexible and conformable.
Supplied cut to length, this metal mesh cored rope makes an excellent seal due to its compressability, and adds EMI/RFI protection to cabinets and enclosures.
High Temperature Wire Core Heat Treated Rope Gasket
Click Image
To Open
Catalog Page
Catalog Page
Part Number
R-FG-HT-MC
R-FG-HT-MC
1200°F / 648°C Continuous: Higher Intermittent
This high temperature, heat & flame resistant and thermal insulating fiberglass tadpole tape precision fabricated for consistant size of the tail and bulb. Fabricated with high quality type E fiberglass that will not burn and will withstand continuous exposure to temperatures of 1200°F / 648°C. Commonly used as a gasket or seal for access doors, gate valves and other oven and stove applications.
This material resists most acids and alkalis and is unaffected by most bleaches and solvents. It is highly flexible and conformable.
The base fiber is manufactured to the specifications of ASTM D-578, ASTM committee D13, and subcommittee D13.18.
This tadpole features a high compression and excellent push back, low compression set, with high cycle life, due to the knitted metallic sleeve core.
Tadpole is 1 3/8" Over All Width, with 5/8" bulb and 3/4" tail. The tail is supplied as a flat tube, which may remain empty or may be filled with a wire, rope, etc. by the customer.
This high temperature, heat & flame resistant and thermal insulating fiberglass tadpole tape precision fabricated for consistant size of the tail and bulb. Fabricated with high quality type E fiberglass that will not burn and will withstand continuous exposure to temperatures of 1200°F / 648°C. Commonly used as a gasket or seal for access doors, gate valves and other oven and stove applications.
This material resists most acids and alkalis and is unaffected by most bleaches and solvents. It is highly flexible and conformable.
The base fiber is manufactured to the specifications of ASTM D-578, ASTM committee D13, and subcommittee D13.18.
This tadpole features a high compression and excellent push back, low compression set, with high cycle life, due to the knitted metallic sleeve core.
Tadpole is 1 3/8" Over All Width, with 5/8" bulb and 3/4" tail. The tail is supplied as a flat tube, which may remain empty or may be filled with a wire, rope, etc. by the customer.
Very High Temperature
Fiberglass Tadpole Tape
Fiberglass Tadpole Tape
Click Image
To Open
Catalog Page
Catalog Page
Part Number
TT-FG HC-KC
TT-FG HC-KC
Very High Temperature Fiberglass Rope Gasket with Hollow Core & Clip Mounting
